How to Shoot Panoramas with Canon EOS 6D / 6D Mark II & Sony FE 16-35mm f/2.8 GM

Why This Camera & Lens Are Great for Panoramas

Wondering how to shoot panorama with Canon EOS 6D / 6D Mark II & Sony FE 16-35mm f/2.8 GM? Let’s start with the strengths of the camera body. The Canon EOS 6D (20.2 MP full-frame, ~6.55 µm pixel pitch) and 6D Mark II (26.2 MP full-frame, ~5.75 µm pixel pitch) deliver clean, detailed files with excellent high-ISO behavior. The 6D is famously clean through ISO 1600–3200, and the 6D Mark II adds faster processing and Dual Pixel AF for confident Live View focusing, which is ideal when fine-tuning the nodal point and checking edge sharpness during panorama work.

The Sony FE 16–35mm f/2.8 GM is a pro-grade rectilinear ultra-wide zoom—optically superb with fast f/2.8 for low-light scenes and edge-to-edge sharpness once stopped to f/8–f/11. Its 16mm end offers a very wide field of view that’s perfect for multi-row 360° captures or single-row cylindrical panos with generous overlap.

Important compatibility note: The Sony FE 16–35mm f/2.8 GM is a native Sony E-mount lens designed for mirrorless. It does not natively mount on Canon EF-mount DSLRs (6D/6D Mark II) due to flange distance and electronic aperture control. There are no mainstream adapters that preserve full functionality from Sony FE lens to Canon EF body. If you’re committed to this Canon body, use an equivalent EF-mount rectilinear ultra-wide (e.g., Canon EF 16–35mm f/4L IS USM, EF 16–35mm f/2.8L II/III, or Sigma 14–24mm). The shooting math, overlap, and workflow in this guide remain the same for a 16–35mm rectilinear on full frame.

Quick Setup Overview

• Camera: Canon EOS 6D / 6D Mark II — Full Frame (36×24 mm), 20.2 MP (6D) / 26.2 MP (6D Mark II). Approx. base DR ~12 EV; clean ISO up to ~1600–3200 when properly exposed.
• Lens: Sony FE 16–35mm f/2.8 GM — rectilinear ultra-wide zoom, very sharp from f/5.6–f/11, minimal coma, moderate vignetting wide open; best for panoramas stopped down. (Use an equivalent EF 16–35mm on 6D/6D II.)
• Estimated shots & overlap (on full frame, rectilinear):
  • 16mm spherical 360×180: 2-row method — 8 around at +25°, 8 around at −25°, plus zenith + nadir = 18 frames (25–30% overlap).
  • 16mm single-row cylindrical (no full vertical coverage): 8 around at 0° = 8 frames (30% overlap).
  • 24mm spherical: 10 around at +30°, 10 around at −30°, plus zenith + nadir = 22 frames (25–30% overlap).
  • Gigapixel at 35mm: 12–16 around × 3 rows + zenith + nadir; plan 40–60 frames.
• Difficulty: Moderate. With a panoramic head and careful nodal alignment, stitching is straightforward.

Planning & On-Site Preparation

Evaluate Shooting Environment

Survey the scene before you set up. Look for moving foliage, crowds, reflective glass, bright signage, and strong backlight from sun or windows. If you must shoot through glass, get as close as possible (1–2 cm) and shield the lens with a cloth or hood to suppress reflections. Plan your rotation path to avoid occlusions and to time frames around moving subjects (pedestrians, vehicles) when possible.

Match Gear to Scene Goals

The 6D/6D Mark II’s full-frame sensor gives generous dynamic range at base ISO and robust shadow lifting. For interiors and blue-hour scenes, ISO 100–800 keeps noise low. The 16–35mm (or EF equivalent) at 16–20mm keeps shot counts manageable while preserving straight lines (rectilinear). In tight spaces or with reflective surfaces, rectilinear lenses avoid fisheye warping that can complicate vertical alignment and window edges.

Pre-shoot Checklist

• Charge batteries and carry a spare; format a fast SD card (UHS-I). The 6D/6D II are single-slot—back up to a phone/tablet via tether or copy to a laptop after critical shoots.
• Clean lens and sensor; dust shows up in skies and ceilings.
• Level tripod and pre-calibrate your panoramic head’s nodal settings for 16, 24, and 35mm focal lengths.
• Safety: Watch wind on rooftops, secure bag/cables, and avoid placing the tripod near edges. For car mounts or poles, always add a tether and respect local regulations.
• Backup workflow: If time allows, shoot a second full pass at a slightly different exposure or WB as insurance against stitching or motion issues.

Essential Gear & Setup

Core Gear

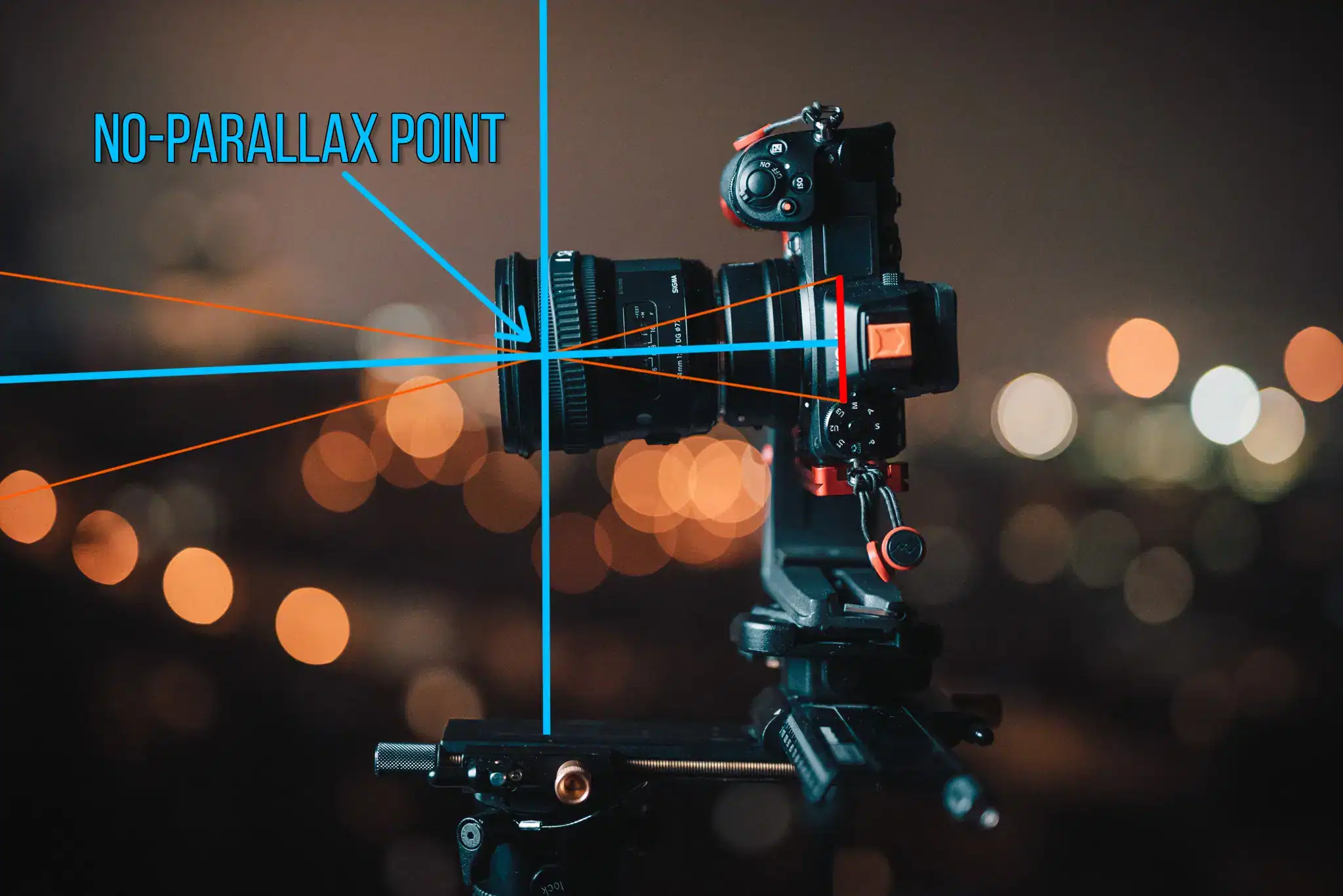

• Panoramic head: This aligns the lens on its entrance pupil (nodal point) to eliminate parallax as you rotate. It’s the single most important accessory for clean stitches in tight spaces or with near objects.
• Stable tripod with leveling base: A half-ball or leveling base speeds setup and keeps your horizon true across the rotation.
• Remote trigger or app: Use a wired remote or Canon Camera Connect app for vibration-free captures, especially at slow shutter speeds.

Optional Add-ons

• Pole or car mount: Excellent for elevated views or drive-by scenes. Always add a safety tether, keep speeds low, and avoid high winds.
• Lighting aids: Portable LED panels or flashes for dark interiors; keep lighting consistent across frames.
• Weather protection: Rain covers, lens hood, and microfiber towels. Moisture and flare are the enemies of clean stitches.

Step-by-Step Shooting Guide

Standard Static Scenes

1. Level and nodal align:
   • Set the tripod level using a bubble or electronic level.
   • On the pano head, slide the camera fore/aft until a near object and a far object remain aligned when you rotate left/right. That fore/aft position is your nodal setting for that focal length.



2. Manual exposure & white balance: Meter a mid-tone, switch to M, and lock WB (Daylight/Tungsten/Kelvin). Consistent exposure and color across frames drastically improve stitching.
3. Capture with tested overlap:
   • At 16mm spherical: 8 frames around at +25°, 8 around at −25°, then 1 zenith and 1 nadir. Aim for 25–30% overlap.
   • At 24mm spherical: 10 around per row at ±30°, plus zenith and nadir.
4. Nadir shot (ground): After the main rotation, shift the tripod slightly to capture a clean floor patch, or shoot a handheld nadir and mark its position. You’ll use this later to remove the tripod.

HDR / High Dynamic Range Interiors

1. Bracket ±2 EV (3 or 5 frames) to balance bright windows and interior shadows. Keep ISO at 100–200 when possible for maximum dynamic range.
2. Lock WB and use manual focus. Shoot the entire pano at one focal length and one focus distance to avoid stitching shifts across brackets.
3. Remember bracketing multiplies frame count: a 18-frame pano with 3-shot brackets becomes 54 exposures.

Low-Light / Night Scenes

1. Use f/5.6–f/8, ISO 100–800, and longer shutter speeds (1–8 s) for clean files. The 6D/6D II handle ISO 1600–3200 if needed, but prioritize a tripod and longer shutters first.
2. Use Live View to eliminate mirror slap or enable Mirror Lockup with a 2 s timer. Trigger with a remote to avoid vibrations.
3. Turn off image stabilization if your lens has it (the Sony 16–35 GM does not). IS can introduce blur on a tripod.

Crowded Events

1. Do two passes. First pass for structure, second pass timing frames to catch gaps in the crowd. Note the pano’s start angle so you can sync passes.
2. In post, mask people between frames or favor the cleanest pass per segment.

Special Setups (Pole / Car / Elevated)

1. Secure everything. Use clamps rated for your gear weight and add a secondary tether. Consider a safety line to your belt when working over edges.
2. Use higher shutter speeds to fight vibration (1/200–1/500) and increase ISO if needed. Smaller overlaps (25–30%) keep counts manageable while minimizing blur risk.

Recommended Settings & Pro Tips

Exposure & Focus

Critical Tips

• Manual focus: Set to the hyperfocal distance at your chosen aperture. On 16mm at f/8 on full frame, focusing a few meters out typically keeps everything from ~1 m to infinity sharp.
• Nodal calibration: For each focal length (16/24/35mm), record your fore/aft rail number where parallax disappears. It will change slightly with focus distance and zoom.
• White balance lock: Mixed lighting causes frame-to-frame color shifts. Set a Kelvin value (e.g., 5600K daylight, 3200K tungsten) or a manual preset.
• Shoot RAW: You’ll need latitude for window highlights, sky gradients, and mixed lighting. RAW also helps in matching color across rows.
• Stabilization: The 6D/6D II have no IBIS. If your lens has IS, turn it off on a tripod. Use Live View “silent shooting” to reduce vibration.

Stitching & Post-Processing

Software Workflow

PTGui is an industry favorite for complex 360×180 stitches and HDR workflows; Hugin is a capable open-source alternative. Rectilinear ultra-wide lenses need a bit more frames than fisheye, but you get straighter lines and more natural interiors. Aim for ~25–30% overlap at 16–24mm. Export equirectangular 2:1 images for VR viewers or virtual tour platforms. For a deep dive on PTGui’s strengths for advanced panoramas, see this review. PTGui reviewed for high-end panorama work

Cleanup & Enhancement

• Tripod/nadir patch: Use a clean nadir shot or AI-based patching tools. Clone carefully to preserve floor textures.
• Color and noise: Match color balance across rows, then apply gentle noise reduction for 6D/6D II night scenes at ISO 800+.
• Horizon and level: Use pitch/roll/yaw controls in your stitcher; straighten verticals in interiors.
• Output: Save a master 16-bit TIFF, then export a high-quality JPEG (e.g., 12–16k px wide) for web/VR use.

For a practical, visual setup guide to panoramic heads and 360 capture (useful for rectilinear zoom workflows), these resources expand on best practices. Set up a panoramic head for high-end 360 photos

Video: From Capture to Stitch

Watch a concise walkthrough of panorama capture and stitching fundamentals (concepts apply to the 6D/6D Mark II + 16–35mm rectilinear workflow).

Useful Tools & Resources

Software

• PTGui (commercial) — fast, precise control points, robust HDR
• Hugin (open source) — great for learning and custom control
• Lightroom / Photoshop — RAW adjustments, spot removal, nadir cleanup
• AI tripod removal tools — for quick nadir patching in virtual tours

Hardware

• Panoramic heads: Nodal Ninja, Leofoto, Sunwayfoto
• Carbon fiber tripods: stable but lightweight for travel and rooftops
• Leveling bases: 60–75 mm half-ball or dedicated leveller
• Wireless/wired remote shutters
• Pole extensions / car mounts (with safety tethers)

Disclaimer: software/hardware names provided for search reference; verify compatibility, availability, and current versions.

If you’re new to pano heads and want fundamentals plus practical buying guidance, this primer is excellent. Panoramic head tutorial and buyer’s guide

Real-World Scenarios & Field Advice

Indoor Real Estate (Bright Windows)

Mount your 6D/6D II on a pano head at 16–20mm. Shoot 3- or 5-shot brackets at ±2 EV to tame windows and interior lighting. Keep WB at a fixed Kelvin to avoid color cast shifts across frames. Consider turning off mixed lighting or gel lights so you aren’t fighting different color temperatures during stitching.

Outdoor Sunset Landscape

Arrive early to set a clean horizon and test your nodal alignment. Start shooting at late golden hour, then again at peak color. Use f/8, ISO 100–200, and longer shutters. If the sun is in-frame, shade the lens when possible to reduce flare and capture a second frame slightly offset to help you mask in cleaner sun rays later.

Event Crowds

At 16–24mm, overlap generously (30%). Time your rotation so each frame catches people mid-step—consistent subject motion reduces ghosting. If a person blocks a key detail, shoot an extra safety frame after they pass and mask in post.

Rooftop or Pole Capture

Wind can ruin sharpness. Use faster shutters (1/200–1/500) at ISO 400–800 and minimize time at each rotation stop. Add a safety line to your pole or tripod. Pre-plan your pano sequence to reduce how long your gear is exposed.

Common Mistakes & How to Avoid Them

• Parallax error: Always align to the entrance pupil. Even a few millimeters off can produce stitching tears near furniture or railings.
• Exposure flicker: Use full manual exposure and locked WB/Kelvin. Don’t mix auto and manual across rows.
• Tripod shadows and footprints: Capture a clean nadir, or step back and shoot a handheld nadir to patch later.
• Motion ghosting: Take timed safety frames and mask in post. For water or clouds, consider longer shutter speeds for a uniform blur.
• Noise and muddy shadows: Favor base ISO with longer shutters on a sturdy tripod. Expose to protect highlights, then lift shadows in RAW.

Frequently Asked Questions

• Can I physically mount the Sony FE 16–35mm f/2.8 GM on a Canon EOS 6D / 6D Mark II?

  No. FE-to-EF adapters that preserve aperture/focus don’t exist in a reliable, mainstream form due to flange distance and electronics. Use an EF-mount 16–35mm equivalent on the 6D/6D II. The capture and stitching workflow in this guide remains the same for any 16–35mm rectilinear on full frame.

• Is 16mm wide enough for a single-row 360×180?

  Not for a full sphere. At 16mm rectilinear on full frame you’ll typically need two rows (e.g., ±25–30°) plus zenith and nadir. For single-row 360, you’re making a cylindrical pano (no full vertical coverage).

• Do I need HDR for interiors with bright windows?

  Usually yes. Bracket ±2 EV (3 or 5 frames) at each position to hold both window detail and interior shadows. Keep WB fixed and avoid changing aperture mid-pano.

• What ISO range is safe on the 6D/6D Mark II for night panoramas?

  For best quality, ISO 100–800 on a tripod. If you need speed, ISO 1600–3200 is still usable with careful exposure and noise reduction. Favor longer shutters over higher ISO when possible.

• How do I avoid parallax with this setup?

  Use a proper panoramic head and calibrate the entrance pupil for each focal length (16/24/35mm). Align a near and far object, rotate, and adjust the fore/aft rail until their relative position doesn’t shift. Record those rail numbers for repeatability.

Authoritative References

For broader DSLR/virtual tour context and lens selection guidance, this field-tested FAQ is helpful. DSLR virtual tour camera and lens guide

If you’re new to publishing to VR platforms, this overview clarifies equirectangular output and pipeline basics. Using a DSLR to shoot and stitch a 360 photo

Final Thoughts

Even though the Sony FE 16–35mm f/2.8 GM won’t natively mount to a Canon 6D/6D Mark II, the method described here applies perfectly to an EF 16–35mm equivalent. With careful nodal alignment, consistent exposure and WB, and disciplined overlap, these Canon full-frame bodies produce clean, detailed 360° panoramas in any scenario—from interiors to city rooftops. Keep your workflow simple, your safety first, and your files backed up, and you’ll have reliable, professional results every time.
